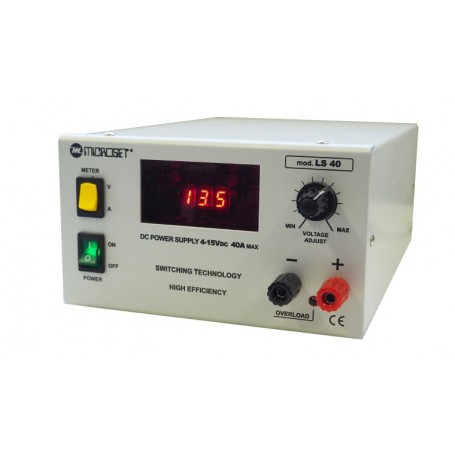

ADJUSTABLE D.C. POWER SUPPLY
• High efficiency >90%
• Low ripple
• Continuous service 24h
• Rugged and powerful
• Quality test
• EMI less
• Comfortable and easy use
Very efficient and reliable adjustable voltage A C-D.C. power supply for continuous service also in difficult applications without interference emissions
Features: wide and accurate digital display V+A for output metering, speed blower control, quiet operation.
Cigarlighter outlet 10A max on the back.
The bigger models PS50 and PL430 includes double outlets: on front panel 20A max, on the back for max output.
APPLICATIONS: radio-telecommunications, R&D laboratories industry, service, general purpose.
OUTPUT: V DC: 4-15V; A max: 40A
RIPPLE R.M.S. typ. 40mV
SIZE WxDxH (mm): 161x255x95
WEIGHT (Kg): 2.2
• Input Power: 230Vac ±10% 50Hz (option 110V 60Hz)
• Line stability: ±0.5%
• Load stability: ±0,5% ±300mV tip.
• Protections: overload, overtemperature, mains fuse
• Cooling: low noise blower, speed control
• Meter: V+A digital display 3 digits
• Environmental temp: -5 +40°C
• Humidity: 20-80% max not condensate
• Altitude: 2000 mt. u.s.l. max
• Compliance: EMC 2014/30/UE, LVD 2014/35/UE, RoHs (lead free), CE mark
