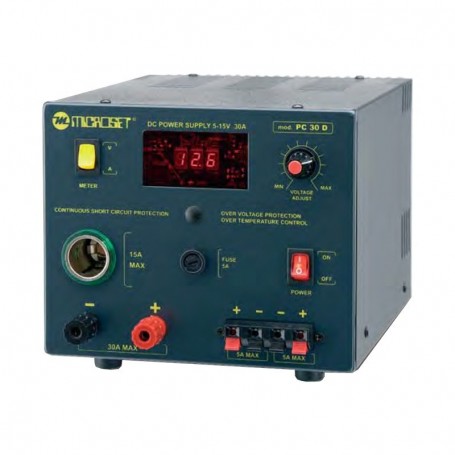

AC-DC ADJUSTABLE POWER SUPPLY LINEAR TECHNOLOGY
TOP QUALITY LESS NOISE EMISSION
• Quality test
• Compact and strong
• Silent and reliable
• Blower less
• E.M.I. less
• Excellent storm light immunity
Advanced and reliable stabilized power supply with linear technology and adjustable output voltage to have the best performance on radio telecommunications and general purpose.
Without any radio interference and noise, blower less, natural cooling.
Low ripple, very long operative, sure and reliable
Many different outlet types: on front panel, cigar lighter, fast wire insertion.
Professional manufacture, very long operative.
• OUTPUT: Vdc 5-15V; A max (duty cycle 50%) 30A; A (duty cycle 95%) 18A
• MAINS STABILITY: ±0,5%
• LOAD STABILITY: ± 200mV
• RIPPLE R.M.S.: 50mV max
• PROTECTIONS: overload overvoltage (crow bar)
• MAIN INPUT: 230V ±5% 50Hz
• SIZE WxDxH mm: 185x260x170
• WEIGHT kg: 9
• ENVIRONMENTAL TEMPERATURE: -5 +40°C
• HUMIDITY: 90% max
• ALTITUDE (U.S.L.): 2000 mt.
• COMPLIANCE: EMC 2014/30/UE, LVD2014/35/UE, RoHs (lead free) CE mark
